Industrial boiler sizing should begin with the factory’s real heating or steam demand—not a guessed capacity or an arbitrary safety margin.
A suitable boiler must cover the maximum realistic simultaneous load while operating steadily during normal and minimum demand. Pressure, temperature, startup duty, fuel, feedwater, altitude, emissions, future expansion and standby requirements must also be reviewed before selecting a final model.
This guide explains how factory owners, engineers, procurement teams and EPC contractors can prepare a preliminary industrial boiler capacity calculation for steam and hot-water systems.
Quick Answer
Industrial boiler sizing starts by listing every steam or heat user, recording its minimum, normal and peak demand, and determining which loads operate at the same time.
Add confirmed distribution losses, boiler-house consumption and defined future loads without counting the same allowance twice. Then verify pressure, temperature, fuel, feedwater, site conditions, emissions and redundancy before selecting the final boiler capacity.
Key Takeaways
- Do not size a boiler from factory area or production capacity alone.
- Record minimum, normal and maximum simultaneous demand.
- Separate continuous loads from batch and startup loads.
- Confirm the required pressure or temperature at the point of use.
- Include distribution losses and boiler-house steam consumption.
- Do not apply several overlapping safety factors.
- Check whether one boiler or multiple boilers provide better load coverage.
- Final sizing requires verified process and site data.
Table of Contents
- What industrial boiler size means
- Start with the process load
- Calculate steam boiler capacity
- Calculate hot-water boiler capacity
- Account for startup and peak loads
- Add a justified design allowance
- Compare one boiler with multiple boilers
- Verify pressure and temperature
- Check fuel, water and site conditions
- Preliminary sizing examples
- Common sizing mistakes
- Information required for final selection
- Frequently asked questions

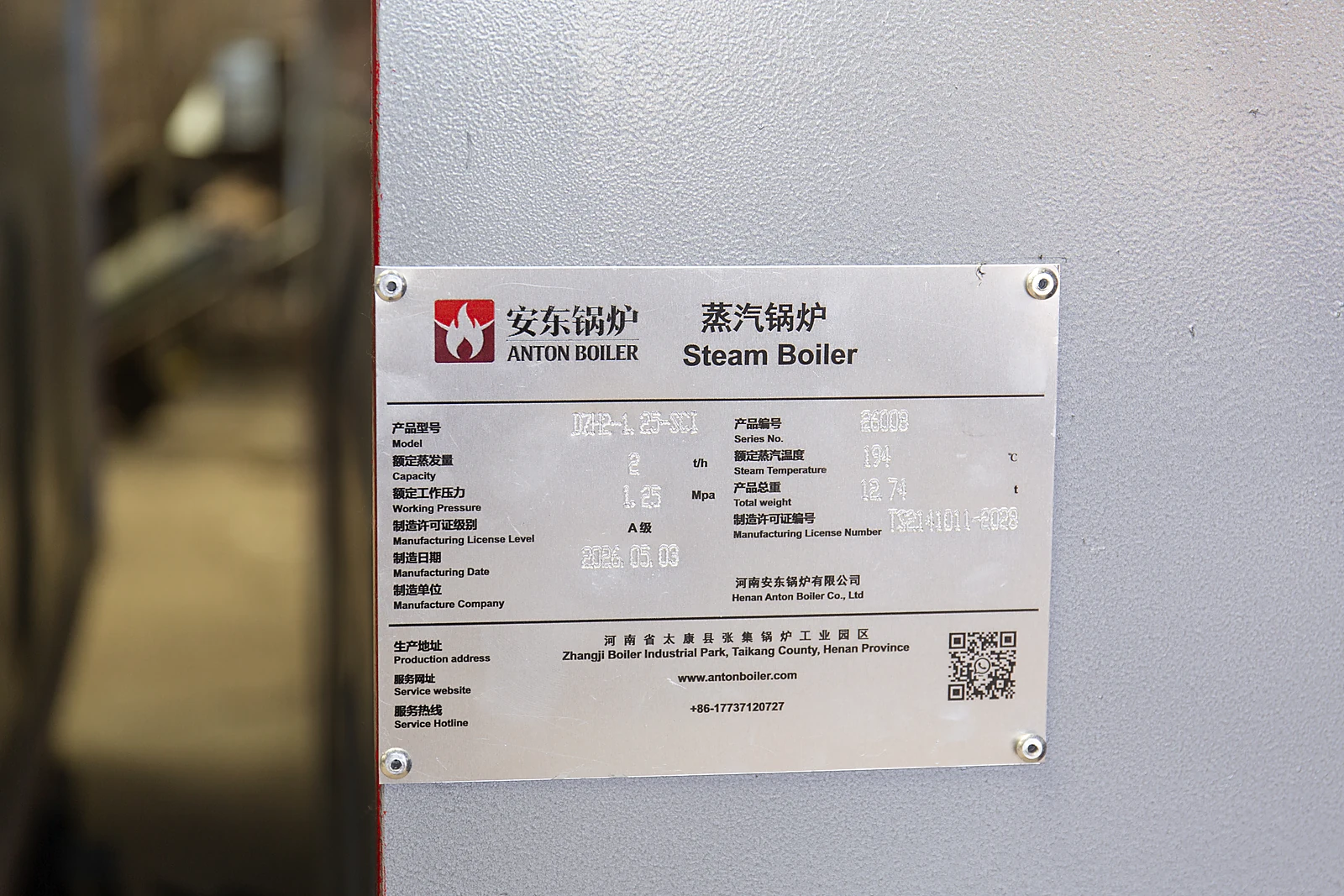

1. What Does Industrial Boiler Size Mean?
The meaning of boiler size depends on the required heat medium.
A steam boiler is normally rated by steam output, such as:
- kg/h
- t/h
- lb/h
- boiler horsepower
- thermal output
A hot-water boiler is normally rated by heat output, such as:
- kW
- MW
- kcal/h
- BTU/h
These units describe capacity, but capacity alone does not define the complete boiler.
Two steam boilers rated at the same tonnes per hour may operate at different pressures, feedwater temperatures, fuel conditions and steam qualities. Two hot-water boilers with the same thermal output may serve systems with different supply temperatures, return temperatures, circulation flow rates and heat-transfer fluids.
Industrial boiler sizing must therefore connect the rated output to the actual operating conditions.
2. Start With the Factory Process Load
Begin by listing every item of equipment that uses steam or hot water.
Typical steam users include:
- Jacketed vessels
- Cooking kettles
- Dryers
- Sterilizers and autoclaves
- Heat exchangers
- Presses
- Textile dyeing equipment
- Cleaning and washdown systems
- Humidification systems
- Steam tracing
- Building heating
For every user, record:
- Required steam flow or heating duty
- Required pressure or temperature
- Minimum operating load
- Normal operating load
- Maximum operating load
- Startup demand
- Operating duration
- Batch-cycle timing
- Whether it operates simultaneously with other users
The maximum connected load is not always the maximum simultaneous load. For example, two batch machines may each require 300 kg/h of steam but may never operate at the same time.
A production schedule is therefore more useful than simply adding all equipment nameplates.
3. How to Calculate Steam Boiler Capacity
Step 1: List Each Steam User
Obtain the steam consumption from the equipment manufacturer whenever possible.
If the equipment documentation does not state steam consumption, calculate the process heat requirement using confirmed mass, specific heat, temperature change, heating time and process losses.
Step 2: Identify Simultaneous Operation
Prepare a load schedule showing which machines operate together.
Separate:
- Continuous production loads
- Batch loads
- Startup loads
- Cleaning loads
- Seasonal loads
- Standby loads
- Future confirmed loads
Step 3: Determine the Maximum Realistic Load
Use the largest realistic simultaneous demand—not the sum of every theoretical maximum and not the daily average.
A useful preliminary relationship is:
Preliminary steam capacity = maximum simultaneous process load + distribution losses + boiler-house steam use + defined future load
Every item must have a clear calculation basis.
Step 4: Confirm the Steam Pressure
The boiler outlet pressure must be high enough to supply the required pressure at the process equipment after considering:
- Steam-main pressure loss
- Control-valve pressure drop
- Pressure-reducing stations
- Elevation changes
- Peak flow
- Steam quality requirements
The same steam flow at different pressure and temperature conditions does not represent the same energy duty.
The U.S. Department of Energy’s Steam System Survey Guide identifies steam flow, steam pressure and temperature, feedwater conditions and fuel data as important boiler-system measurements.
Step 5: Check Feedwater Conditions
Feedwater temperature and condensate return influence the energy required to generate steam.
Confirm:
- Makeup-water temperature
- Feedwater-tank temperature
- Condensate-return percentage
- Condensate-return temperature
- Blowdown requirement
- Water-treatment arrangement
- Possible process contamination
Final fuel-consumption and equipment calculations should use confirmed water and steam properties rather than a general rule of thumb.
4. How to Calculate Hot-Water Boiler Capacity
A hot-water boiler must replace the heat removed from the circulating water or other heat-transfer medium.
A simplified thermal relationship is:
Q = m × Cp × ΔT
Where:
- Q = required heat output
- m = mass flow rate
- Cp = specific heat capacity of the fluid
- ΔT = supply-and-return temperature difference
Illustrative Hot-Water Example
Assume an initial water-system estimate uses:
- Water mass flow: 10 kg/s
- Supply temperature: 80°C
- Return temperature: 60°C
- Temperature difference: 20°C
- Approximate water-specific heat: 4.18 kJ/kg·K
The preliminary duty is:
10 × 4.18 × 20 = 836 kW
This is an illustrative heat-transfer calculation, not a final boiler selection.
The final capacity must also consider:
- Building or process heat loss
- Outdoor design temperature
- Startup or warm-up requirement
- Piping and storage losses
- Domestic-hot-water load, if applicable
- Glycol or another circulating medium
- Future expansion
- Standby requirement
A glycol mixture does not have the same thermal properties as water. Its concentration and operating temperature must be included in the calculation.
Anton Boiler hot-water boiler information:
https://antonboiler.com/hot-water-boiler/
5. Account for Startup and Peak Loads
Startup demand can be higher than normal production demand.
Examples include:
- Heating cold process equipment
- Warming tanks and pipelines
- Starting several production lines together
- Restoring building temperature after a shutdown
- Cleaning or sterilization cycles
- Filling cold hot-water systems
- Starting after a power or fuel interruption
Record both the size and duration of each peak.
A short peak lasting several minutes may require a different solution from a high load lasting several hours. Depending on the process, possible solutions may include staged boiler operation, production scheduling or a properly engineered steam accumulator.
Spirax Sarco explains that a steam accumulator can store thermal energy during lower-demand periods and release steam during peaks. Its sizing depends on the peak demand, duration, allowable pressure drop and off-peak charging capacity.
This equipment should only be selected after engineering review.
6. Add a Justified Design Allowance
A design allowance may be appropriate for:
- Confirmed production expansion
- Reasonably quantified distribution losses
- Measurement uncertainty
- Additional approved equipment
- Degradation or fouling allowances required by the design
- Specified standby capacity
Avoid automatically adding several independent percentages.
For example, a calculation may already contain:
- Peak equipment consumption
- Distribution losses
- Startup demand
- Future production demand
- A general safety margin
If some of these values cover the same uncertainty, the boiler may become unnecessarily oversized.
Document every allowance separately so the supplier can review it.

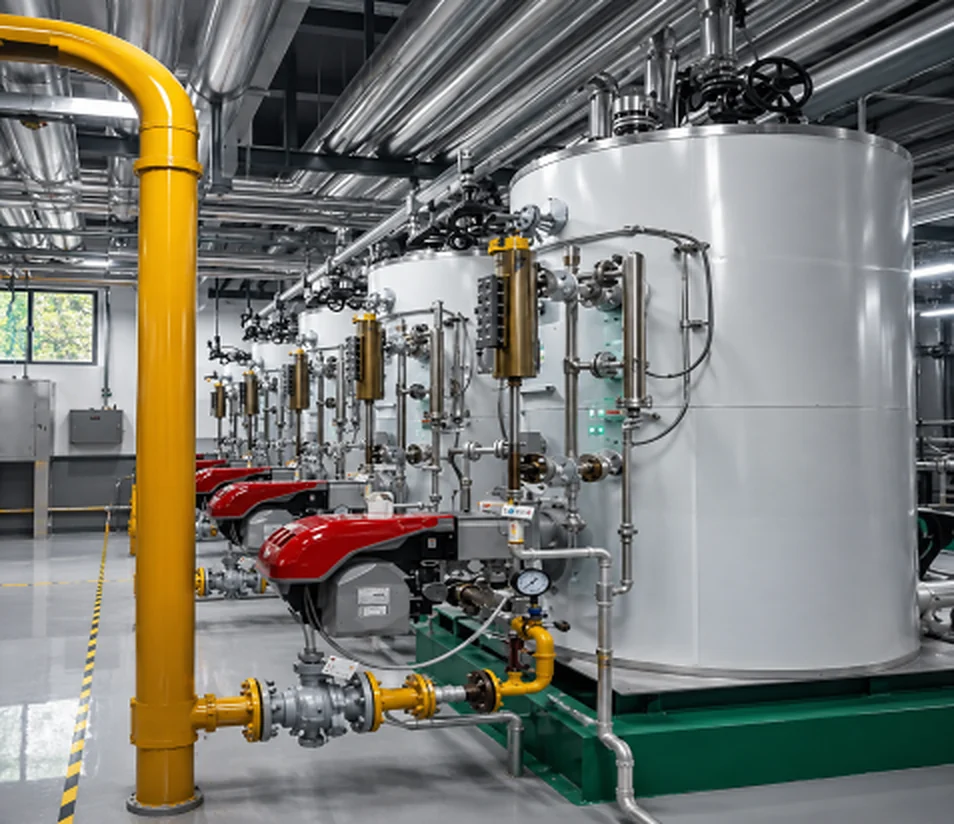

7. One Large Boiler or Multiple Smaller Boilers?
The calculated peak load does not automatically determine the number of boilers.
One Boiler May Be Considered When
- The load is relatively stable.
- Capital simplicity is important.
- The factory can tolerate scheduled shutdowns.
- The selected burner or combustion system can follow the operating range.
- Space and auxiliary-system requirements support one unit.
Multiple Boilers May Be Considered When
- Demand changes significantly between shifts or seasons.
- Production cannot stop during maintenance.
- Staged operation can follow low and high loads more closely.
- Different production lines require different schedules.
- The project requires standby or N+1 capacity.
A multiple-boiler arrangement may improve operational flexibility, but it also adds equipment, valves, controls, piping and maintenance requirements.
The selection should compare lifecycle operation and system complexity—not only boiler-body prices.
8. Verify Pressure and Temperature
Capacity and pressure must be confirmed together.
For steam systems, provide:
- Required pressure at each user
- Boiler outlet pressure
- Saturated or superheated steam requirement
- Maximum allowable pressure
- Pressure-reducing requirements
- Steam-quality or purity requirements
For hot-water systems, provide:
- Required supply temperature
- Expected return temperature
- Design flow rate
- Static pressure
- Maximum working pressure
- Open or closed-loop arrangement
- Water or glycol concentration
Do not raise boiler pressure only to compensate for an incorrectly sized steam main or control valve. The distribution system should be checked as part of the complete design.
9. Check Fuel, Water and Site Conditions
A preliminary capacity calculation must be reviewed against the actual installation.
Fuel Information
Provide:
- Fuel type
- Fuel composition or analysis
- Gas pressure
- Oil viscosity and heating requirement
- Coal or biomass calorific value
- Moisture and ash content for solid fuels
- Storage and handling conditions
- Expected alternative fuels
Feedwater Information
Provide:
- Raw-water source
- Water-analysis report
- Hardness
- Total dissolved solids
- Alkalinity
- Silica when relevant
- Existing treatment equipment
- Condensate-return information
Site Information
Provide:
- Installation country
- Altitude
- Ambient temperature
- Indoor or outdoor installation
- Boiler-room dimensions
- Door and transport access
- Voltage and frequency
- Chimney conditions
- Local emission limits
- Noise requirements
- Required construction code and inspection
High altitude and unusual ambient conditions can affect combustion-air and equipment selection.
Construction code and certification requirements must be written into the request for quotation. ASME explains that its Boiler and Pressure Vessel Certification Program covers the quality-control systems used for design, fabrication, assembly and inspection under applicable BPVC sections. A request for ASME material does not by itself establish that a complete boiler will carry an ASME Certification Mark. See the ASME certification guidance.
Anton Boiler has CE, ISO and EAC documentation. Exact applicability must be confirmed for the selected product, destination country and contract scope.
10. Preliminary Steam-Sizing Example
Consider an illustrative factory with the following steam users:
| Steam User | Rated Demand | Simultaneous Peak Contribution |
|---|---|---|
| Continuous dryer | 650 kg/h | 650 kg/h |
| Two batch kettles | 300 kg/h each | 300 kg/h because only one operates at a time |
| Cleaning system | 250 kg/h | 0 kg/h during production peak |
| Distribution and boiler-house use | — | 80 kg/h |
| Confirmed future production load | — | 150 kg/h |
The preliminary requirement is:
650 + 300 + 80 + 150 = 1,180 kg/h
This example shows why adding every connected load would be misleading.
The next standard boiler size should not be selected until the following are verified:
- Steam pressure
- Peak duration
- Minimum load
- Startup demand
- Feedwater temperature
- Fuel specification
- Site conditions
- Redundancy requirement
- Manufacturer’s actual rating conditions
11. Common Industrial Boiler Sizing Mistakes
Using Factory Area Alone
Factory floor area may help estimate space-heating demand, but it does not establish process-steam consumption.
Using Daily Production Only
Daily output does not show hourly peaks, batch timing or simultaneous equipment operation.
Adding Every Nameplate Maximum
This can significantly overstate demand when equipment does not operate simultaneously.
Sizing Only for the Average Load
The boiler may fail to maintain pressure during real production peaks.
Adding an Arbitrary Large Margin
Oversizing may increase capital cost, cycling and low-load operation without solving the underlying system problem.
Ignoring Minimum Demand
A boiler that matches the peak but spends most hours at a very low load may operate poorly.
Ignoring Feedwater Temperature
Cold makeup water and high condensate return create different energy requirements.
Ignoring Future Loads Until After Purchase
Confirmed expansion should be documented before selecting the equipment arrangement.
Comparing Only Nominal Capacity
Quotations should also be compared by pressure, fuel basis, auxiliaries, controls, water treatment, emissions, documentation, services and exclusions.
12. Industrial Boiler Sizing Information Sheet
Send the supplier the following information:
Process
- Industry and final product
- Production equipment using steam or heat
- Continuous or batch operation
- Number of production lines
- Current and future production schedule
Load
- Minimum demand
- Normal demand
- Maximum simultaneous demand
- Peak duration
- Startup duty
- Daily operating hours
- Annual operating days
Steam or Hot-Water Conditions
- Required steam pressure
- Saturated or superheated steam
- Supply and return temperatures
- Circulation flow rate
- Water or glycol medium
Fuel and Utilities
- Fuel specification
- Fuel-supply pressure
- Voltage, phase and frequency
- Water source and analysis
- Condensate-return percentage
Site and Compliance
- Installation country
- Altitude and climate
- Boiler-room dimensions
- Destination port
- Local construction code
- Emission limits
- Inspection and documentation requirements
Supply Scope
- Boiler body
- Burner or combustion equipment
- Pumps and tanks
- Water treatment
- Economizer or heat recovery
- Blowdown system
- Chimney
- Fuel handling

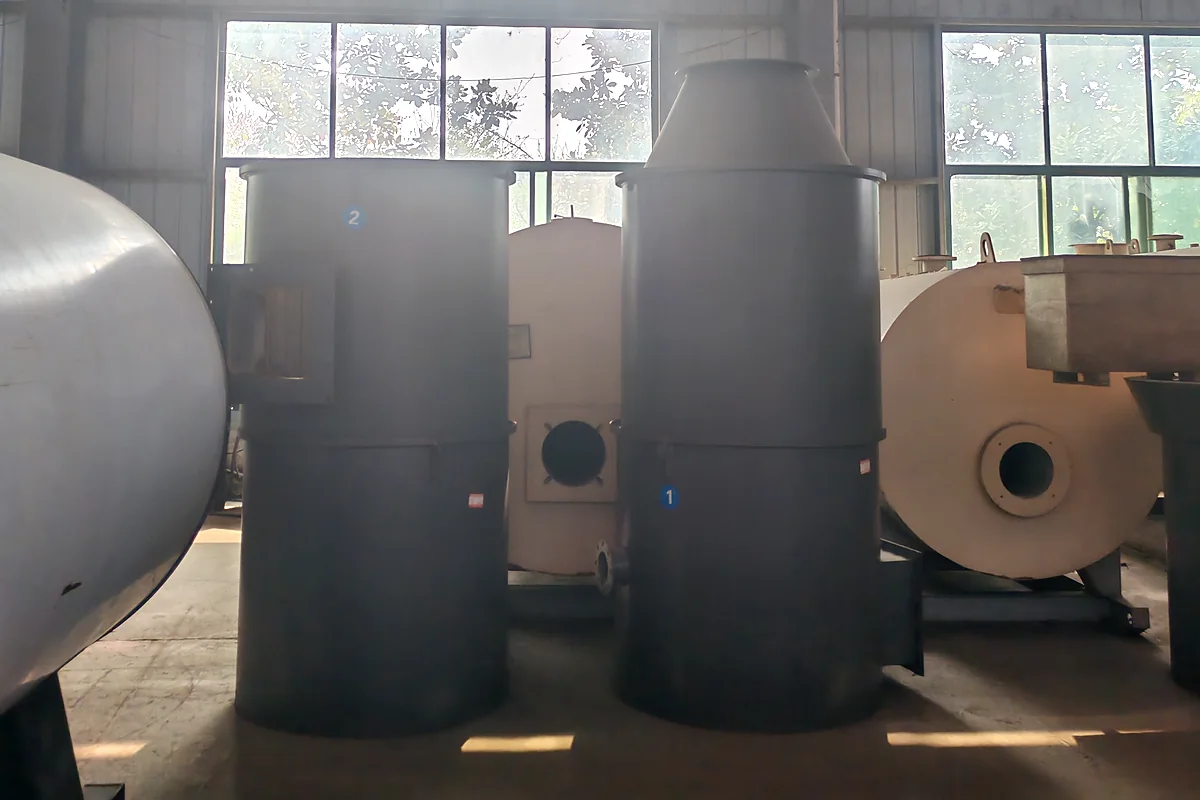

- Emission-control equipment
- Valves and instruments
- Installation materials
- Commissioning
- Training
- Spare parts
For the complete quotation checklist, visit:
https://antonboiler.com/industrial-boiler-quotation-information/
Frequently Asked Questions
How do I know what size industrial boiler I need?
List every steam or heat user, determine the maximum realistic simultaneous demand, and add documented system losses, boiler-house consumption and approved future loads. Then verify pressure, temperature, fuel, feedwater, site conditions and standby requirements before selecting a final model.
Should I add a safety margin to boiler capacity?
A justified allowance may be necessary, but it should not be arbitrary. Identify measurement uncertainty, confirmed expansion and calculated losses separately. Avoid adding several overlapping margins that cover the same risk.
Is an oversized boiler safer than an undersized boiler?
Not automatically. An undersized boiler may fail to meet production demand, while an oversized boiler may spend long periods at low load or cycle frequently. Reliable sizing should cover the realistic peak and minimum operating conditions.
What is the difference between steam and hot-water boiler sizing?
Steam boiler sizing is primarily based on steam mass flow, pressure and feedwater conditions. Hot-water boiler sizing is based on thermal duty, flow rate, fluid properties and the supply-and-return temperature difference.
Can I size a boiler from the existing boiler nameplate?
The existing rating is a useful reference, but it should not be the only basis. Production changes, measured operating load, fuel use, pressure stability, water conditions and future demand should also be reviewed.
When should a factory use multiple boilers?
Multiple boilers may be useful when loads vary widely, production requires standby capacity or maintenance cannot stop the plant. The additional piping, controls, space and cost must also be considered.
Does boiler horsepower equal steam capacity?
Boiler horsepower is a heat-output rating. One boiler horsepower is conventionally associated with 33,475 BTU/h and 34.5 lb/h of steam “from and at 212°F.” Actual selection must still use the specified steam pressure, temperature and feedwater conditions.
What information should I send Anton Boiler?
Send your application, minimum and peak demand, pressure or temperature, operating schedule, fuel specification, water analysis, condensate return, voltage, installation country, altitude, local regulations and required supply scope.
Conclusion: Base Industrial Boiler Sizing on Real Demand
Correct industrial boiler sizing requires more than choosing a capacity from a catalogue.
The design should be based on the factory’s minimum, normal and maximum simultaneous demand, required pressure or temperature, startup conditions, fuel, feedwater, site parameters and future production plan.
A clear operating profile allows the supplier to compare one boiler, multiple boilers and supporting equipment on a consistent basis.
Request an Industrial Boiler Capacity Review
Send Anton Boiler your process description, load profile, pressure or temperature, fuel, water information, installation country and required supply scope.
