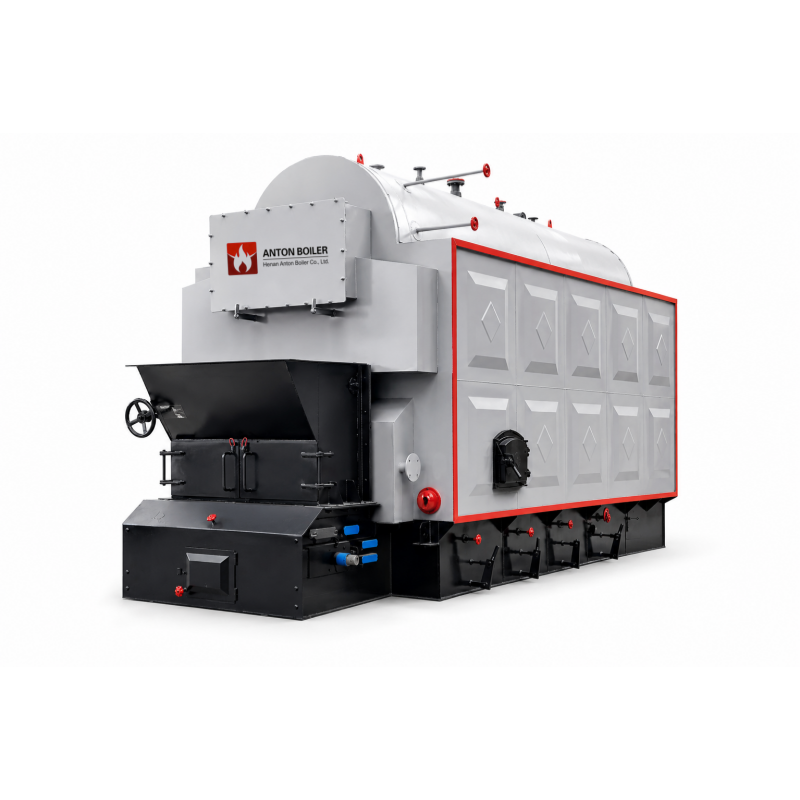

Coal Biomass Steam Boiler
Coal biomass steam boiler is designed for industrial steam supply projects using coal, wood chips, biomass pellets, palm shell, sawdust, rice husk and other solid fuels. Anton Boiler provides DZL, DZH, LHG and SZL coal biomass steam boiler solutions according to steam capacity, working pressure, fuel type, combustion method and application requirements.
Industrial Coal and Biomass Fired Steam Boiler
Coal biomass steam boiler is suitable for industrial production projects where solid fuel is available and fuel cost control is important. Anton Boiler can provide DZL chain grate boilers, DZH manual feeding boilers, LHG vertical boilers and SZL water tube boilers according to steam capacity, fuel type and automation requirements.
These boilers can use coal, wood chips, biomass pellets, palm shell, sawdust, rice husk and other solid fuels. They are widely used in food processing, textile, wood processing, building materials, heating and general industrial production.
Models: DZL, DZH, LHG, SZL
Steam Capacity: 0.1–45 T/H or customized
Working Pressure: 0.7 MPa, 1.0 MPa, 1.25 MPa, 1.6 MPa, 2.5 MPa or customized
Fuel: Coal, wood chips, biomass pellets, palm shell, sawdust, rice husk
Combustion Type: Manual feeding, chain grate or reciprocating grate combustion system
Boiler Structure: Fire tube boiler or water tube boiler according to capacity and model
Auxiliary System: Fan, dust collector, water pump, water treatment, control cabinet, chimney, coal feeder and slag remover
Applications: Food processing, textile, wood processing, heating, building materials and industrial production
Technical Parameters
| Item | Specification |
|---|---|
| Boiler Model | DZL, DZH, LHG, SZL Series |
| Rated Steam Capacity | 0.1 T/H, 0.2 T/H, 0.5 T/H, 1 T/H, 2 T/H, 4 T/H, 6 T/H, 10 T/H, 15 T/H, 20 T/H, 35 T/H, 45 T/H or customized |
| Working Pressure | 0.7 MPa, 1.0 MPa, 1.25 MPa, 1.6 MPa, 2.5 MPa or customized |
| Fuel Type | Coal, wood chips, biomass pellets, palm shell, sawdust, rice husk and other solid fuels |
| Combustion Type | Manual feeding, chain grate or reciprocating grate combustion system |
| Boiler Structure | Fire tube boiler or water tube boiler according to capacity and model |
| Thermal Efficiency | Up to 78%–85%, depending on boiler model, fuel quality and system configuration |
| Control System | Manual control or automatic control cabinet according to boiler configuration |
| Auxiliary System | Fan, dust collector, water pump, water treatment, control cabinet, chimney, coal feeder, slag remover and auxiliary equipment |
| Application | Food processing, textile, wood processing, heating, building materials and industrial production |
Scope of Supply
Anton Boiler can provide a complete coal biomass steam boiler system according to project requirements, including boiler body, grate system, control cabinet, fan, water pump, water treatment system, dust collector, chimney, valves and other auxiliary equipment.
Boiler Body
Coal or biomass fired boiler body with pressure parts, furnace, smoke tubes or water tube structure and insulation casing.
Grate System
Manual grate, chain grate,reciprocating grate or customized combustion system according to fuel type and automation requirements.
Fans
Forced draft fan and induced draft fan support stable combustion and flue gas discharge.
Control Cabinet
Control cabinet for boiler operation, fan control, water level protection and system safety control.
Dust Collector
Wet scrubber, dust collector or emission control equipment can be configured according to local requirements.
Water Treatment, Chimney & Accessories
Water treatment system, feed water pump, chimney, valves, instruments and pipelines can be supplied according to project requirements.
Applications
Coal biomass steam boilers are widely used in industrial steam supply and heating projects. Anton Boiler can recommend suitable boiler model, combustion system and auxiliary equipment according to fuel characteristics and production process.
Food Processing
Steam supply for cooking, sterilization, drying, cleaning and food production lines.
Textile Industry
Steam supply for dyeing, washing, drying, ironing and textile production processes.
Wood Processing
Steam or heat support for wood drying, board production and wood processing systems.
Factory Heating
Steam or hot water support for factory heating, district heating and industrial heating projects.
Building Materials
Steam supply for curing, drying, heating and building material production processes.
Industrial Production
Stable steam supply for general industrial production processes using coal or biomass fuel.
Why Choose Anton Boiler for Coal Biomass Steam Boiler?
Anton Boiler provides customized coal and biomass steam boiler solutions according to fuel type, steam capacity, working pressure, emission requirements and installation conditions. Our team can help customers choose suitable boiler models and complete auxiliary systems.
Fuel Adaptability
Coal, wood chips, biomass pellets, palm shell, sawdust and other solid fuels can be selected according to local fuel conditions.
Customized Boiler Model
DZL, DZH, LHG and SZL boiler models can be recommended according to capacity, fuel and automation requirements.
Complete Auxiliary System
Fans, dust collector, water treatment, control cabinet, pump, chimney and other auxiliary equipment can be supplied.
Project Support
Anton Boiler provides technical documents, installation guidance, operation training, spare parts and after-sales support.
Need a Coal Biomass Steam Boiler Solution?
Send us your required steam capacity, working pressure, fuel type, fuel size, application industry and installation country. Anton Boiler will provide a suitable coal biomass boiler solution and quotation for your project.
