Thermal Oil Boiler
Thermal oil boiler is designed for high-temperature industrial heating projects using thermal oil as heat transfer medium. Anton Boiler provides gas-fired, oil-fired, coal-fired, biomass-fired and electric thermal oil boiler solutions according to temperature, heating capacity, fuel type and application requirements.

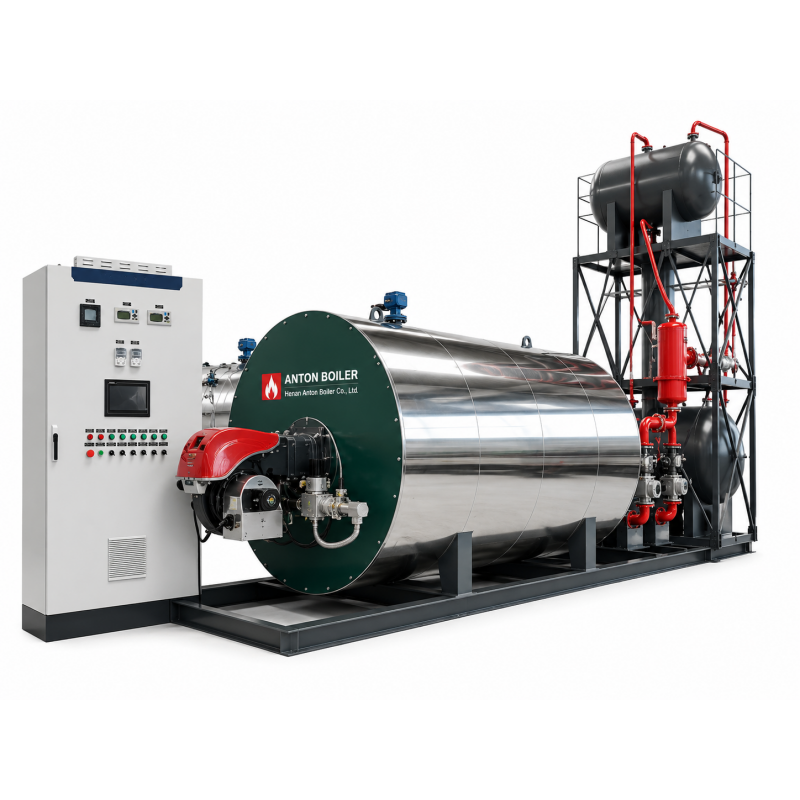

YY(Q)W Gas / Oil Fired Thermal Oil Boiler

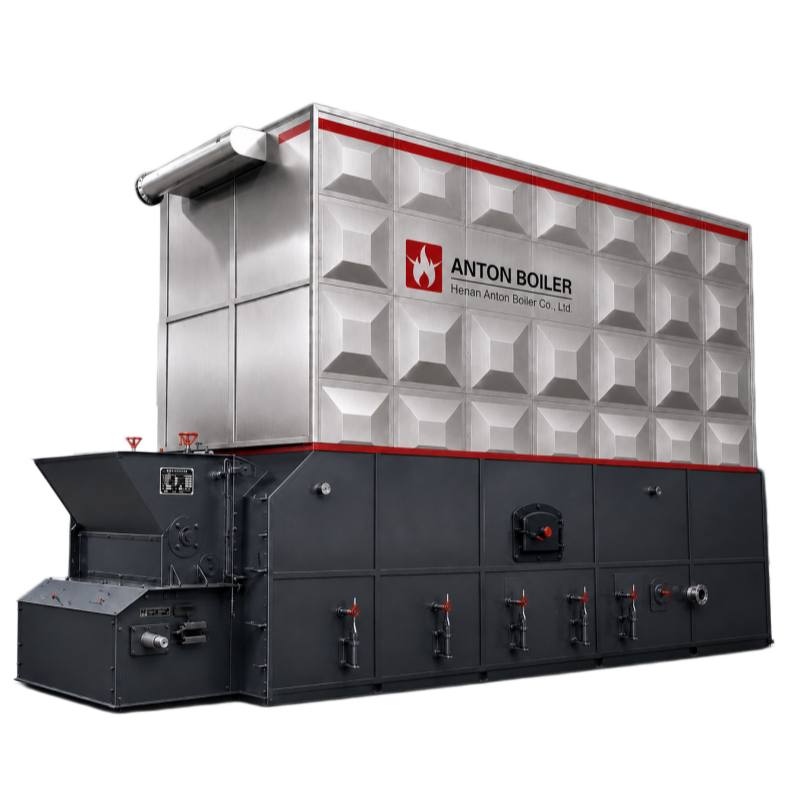

YLW Coal / Biomass Fired Thermal Oil Boiler

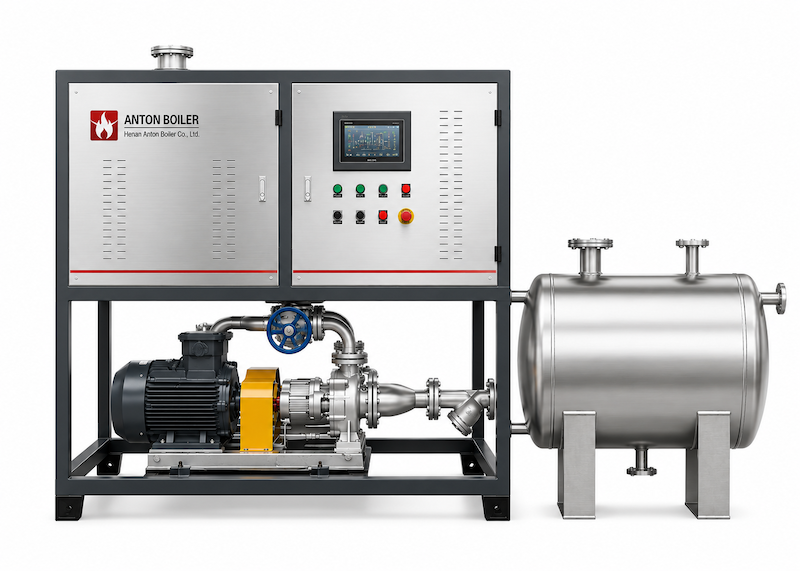

YDW Electric Thermal Oil Boiler
Thermal Oil Boiler Solutions for Different Fuels
Anton Boiler provides gas-fired, oil-fired, coal-fired, biomass-fired and electric thermal oil boiler systems for high-temperature industrial heating projects.
Compared with steam boilers, thermal oil boilers can provide stable high-temperature heat transfer under lower operating pressure. They are widely used in chemical, asphalt, wood processing, textile, coating, printing, drying and other industrial heating processes.
Models: YY(Q)W, YLW, YDW
Heating Capacity: 120 kW–14000 kW or customized
Working Temperature: Up to 320°C
Design Pressure: 0.8 MPa / 1.0 MPa or customized
Fuel: Natural gas, diesel, heavy oil, coal, biomass, electricity
Heat Carrier: Thermal oil
Applications: Chemical, asphalt, wood processing, textile, coating, printing, drying and high-temperature heating
Technical Parameters
| Item | Specification |
|---|---|
| Boiler Model | YY(Q)W, YLW, YDW Series |
| Heating Capacity | 120 kW–14000 kW or customized according to project requirements |
| Working Temperature | Up to 320°C |
| Design Pressure | 0.8 MPa / 1.0 MPa or customized according to system design |
| Fuel Type | Natural gas, diesel, heavy oil, coal, biomass, electricity |
| Boiler Type | Gas-fired thermal oil boiler, oil-fired thermal oil boiler, coal biomass thermal oil boiler and electric thermal oil boiler |
| Heat Carrier | Thermal oil |
| Thermal Efficiency | Up to 85%–95%, depending on boiler type, fuel and system configuration |
| Control System | Automatic control cabinet according to boiler type and project requirements |
| System Configuration | Thermal oil boiler body, burner or combustion system, circulation pump, expansion tank, oil storage tank, control cabinet, valves and pipeline system |
| Application | Chemical, asphalt, wood processing, textile, coating, printing, drying and high-temperature heating |
Scope of Supply
Anton Boiler can provide a complete thermal oil boiler system according to project requirements, including thermal oil boiler body, burner or heating system, circulation pump, expansion tank, oil storage tank, control cabinet, valves, instruments, pipelines and auxiliary equipment.
Thermal Oil Boiler Body
Thermal oil boiler body designed for stable high-temperature heat transfer and continuous industrial heating operation.
Burner or Heating System
Gas burner, oil burner, coal or biomass combustion system, or electric heating system can be configured according to fuel type.
Circulation Pump
Thermal oil circulation pump supports stable heat transfer flow and continuous system operation.
Expansion Tank
High-level expansion tank helps absorb thermal oil volume expansion and support safe system operation.
Oil Storage Tank
Low-level oil storage tank can be configured for thermal oil storage, drainage and system maintenance.
Control Cabinet & Accessories
Control cabinet, valves, instruments, pipelines and safety devices can be supplied according to system configuration.
Applications
Thermal oil boilers are widely used in industrial processes requiring stable high-temperature heating. Anton Boiler can recommend suitable thermal oil boiler type, heating capacity, fuel system and auxiliary configuration according to different industries.
Chemical Industry
High-temperature heating for reactors, drying, concentration, distillation and chemical production processes.
Asphalt Industry
Thermal oil heating for asphalt storage tanks, mixing systems and road material production.
Wood Processing
Stable heat supply for wood drying, plywood production, hot press and board processing systems.
Textile Industry
High-temperature heating for dyeing, drying, setting and textile production processes.
Coating & Printing
Thermal oil heating for coating lines, printing equipment, drying ovens and heat transfer systems.
Industrial Drying
Stable high-temperature heat supply for drying equipment and continuous industrial heating processes.
Why Choose Anton Boiler for Thermal Oil Boiler?
Anton Boiler provides customized thermal oil boiler solutions according to heating temperature, thermal capacity, fuel type, process requirements and installation conditions. Our team can help customers design complete thermal oil heating systems for stable and efficient operation.
High-Temperature Heating
Thermal oil systems can provide stable high-temperature heating under lower operating pressure compared with steam systems.
Multiple Fuel Options
Gas, oil, coal, biomass and electric thermal oil boiler systems can be selected according to local fuel conditions.
Complete System Design
Boiler body, circulation pump, expansion tank, oil storage tank, control cabinet, pipelines and safety devices can be configured.
Project Support
Anton Boiler provides technical documents, installation guidance, operation training, spare parts and after-sales support.
Need a Thermal Oil Boiler Solution?
Send us your required heating temperature, thermal capacity, fuel type, application industry and installation country. Anton Boiler will provide a suitable thermal oil boiler system solution and quotation for your project.
